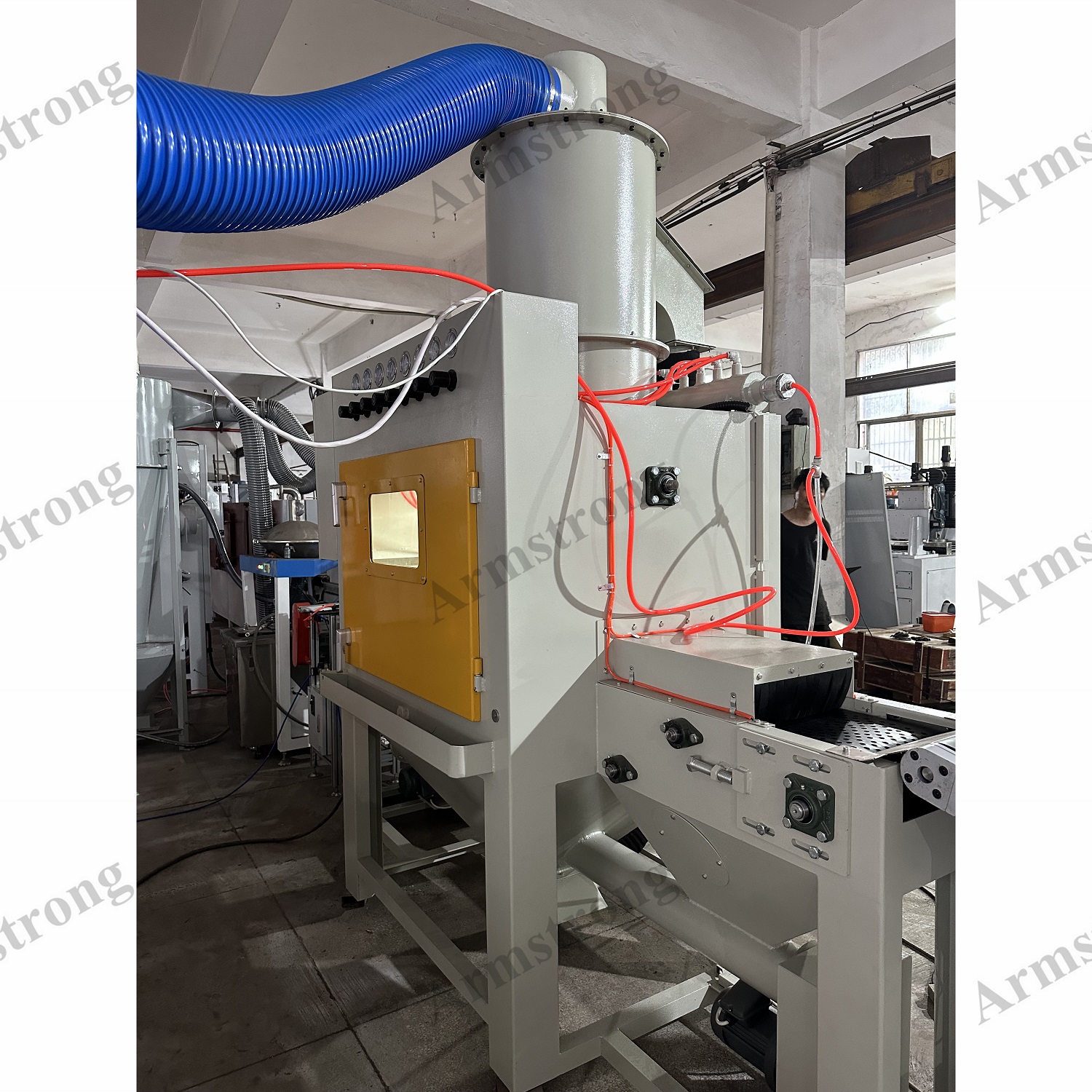

Sand blasting machine

Short Description:

Partial technical parameters:

Machine size : spray room 1650Lx1200Wx2550H,recycling box 1200LX1200W2550H
Pad size: 30mm x 280mm Max.
Production capacity: 2000 pcs/ hr
Gun material: aluminum alloy shell, ceramic nozzle.

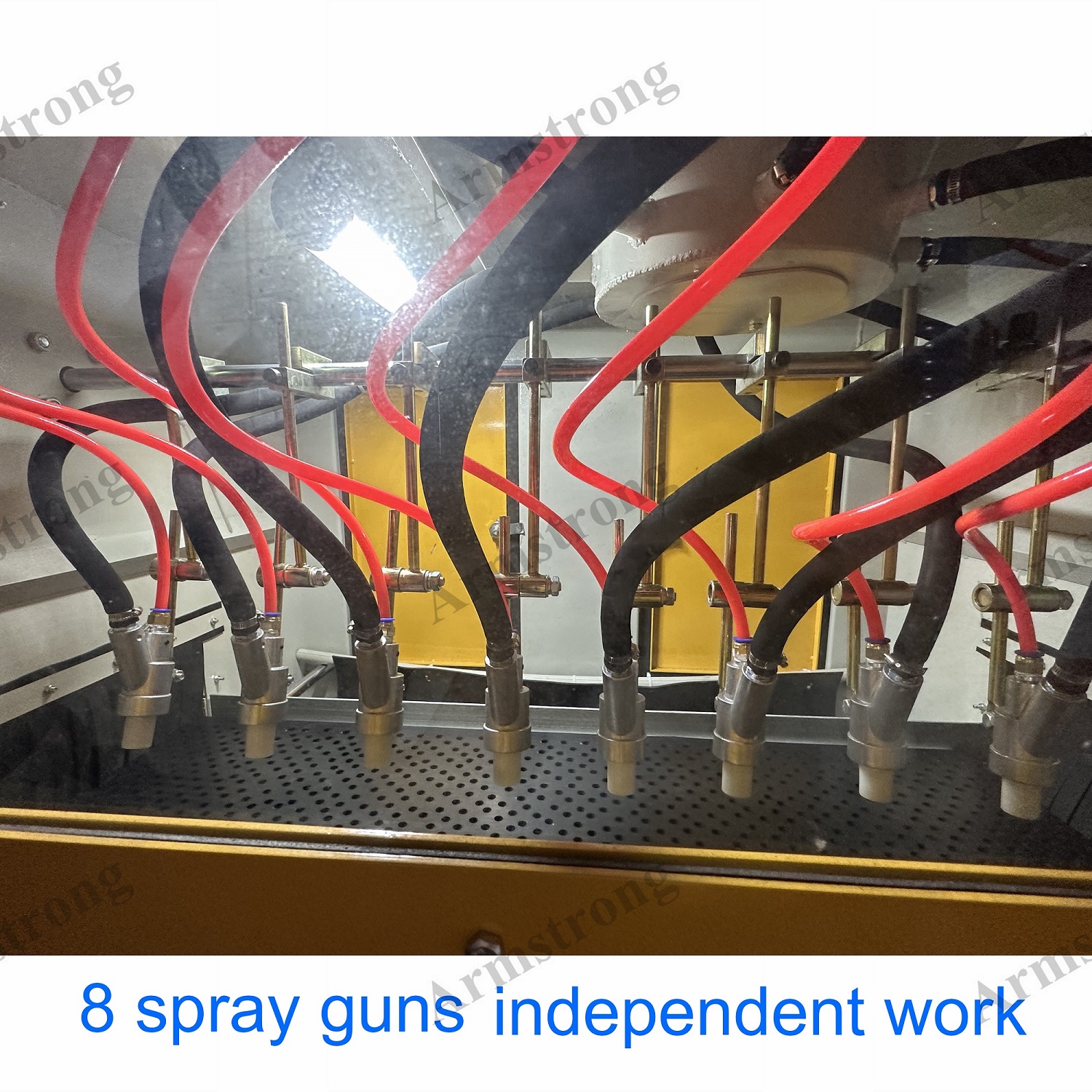

Guns: (according to different requirements can be opened to 1-6)
Sandblasting material: silica sand or emery, particle size 2-3
Swing angle, intensity: less than 30 degrees, according to the pressure
Swing motor: turbine motor 400W 20: 1
Transmission speed: 0 – 10 m / min.
Drive control mode: continuous
Drive motor: Turbine motor 60: 1,400 W
Conveyor: belt, wide 200
Tensioning device: screw adjustment
Feeding device: single continuous
Motor: Turbine motor 400w, 20: 1
Transmission: positive and negative screw propulsion mechanism
Wind motor: centrifugal fan, 4-72-3.6A, 1578-989Pa, speed 2900, wind speed 2600-5200,3KW
Recycling method: wind centrifugal barrel
Treatment: bag, 36 pcs
Vibration mode: cylinder 2 pcs

Product Detail

Product Tags

Application:

The first shot blasting equipment in the world was born 100 years ago. It is mainly used to remove impurities and oxide skin on various metal or non-metal surfaces and increase roughness. After a hundred years of development, shot blasting technology and equipment have been quite mature, and its application scope has gradually expanded from the initial heavy industry to light industry.

Due to the relatively large force of shot blasting, it is easy to cause the reduction of surface flatness or other problems for some products that only need a slight treatment effect. For example, motorcycle brake pads need to be cleaned after grinding, and shot blasting machine can easily cause damage to the friction material surface. Thus, sand blasting machine has become a good choice of surface cleaning equipment.

The main principle of sand blasting equipment is to use compressed air to spray sand or small steel shot with a certain particle size on the rusted surface of the workpiece through the sand blasting gun, which not only achieves rapid rust removal, but also prepares the surface for painting, spraying, electroplating and other processes.
