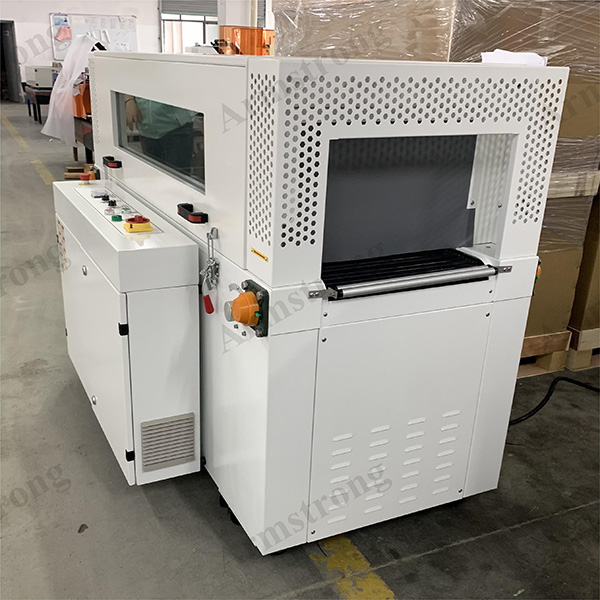

Heat Shrink Machine
Main components of the machine
Advantage:
The advantages of heat shrink packaging machines are mainly reflected in:
Cost effectiveness:
Compared with other packaging methods, heat shrink packaging has lower costs and can effectively extend the shelf life of products.
Flexibility:
Suitable for products of various shapes and sizes, with high adaptability.
Enhance product appearance:
Heat shrink packaging can make products look neater and more upscale, which helps to enhance brand image.
Easy operation:
The wind direction, wind speed and wind force of the whole machine are adjustable, the furnace cover can be opened freely, the heating body uses double-layer toughened glass, and the cavity can be seen.
|
Technical Specifications |
|
|
Power |
380V, 50Hz, 13kw |
|
Overall dimensions(L*W*H) |
1800*985*1320 mm |
|
Heating cavity dimensions(L*W*H) |
1500*450*250 mm |
|
Worktable height |
850 mm (adjustable) |
|
Conveying speed |
0-18 m/min (adjustable) |
|
Temperature range |
0～180℃ (adjustable) |
|
Using temperature range |
150-230℃ |
|
Main material |
Cold plate, Q235-A steel |
|
Applicable shrink film |
PE, POF |
|
Applicable film thickness |
0.04-0.08 mm |
|
Heating pipe |
Stainless steel heating tube |
|
Conveying belt |
08B hollow chain rod conveying, covered with high temperature resistant silicone hose |
| Machine performance |
Frequency control, automatic temperature regulation, solid-state relay control. It’s stable and reliable, with long service life and low noise. |
| Electrical configuration |
Centrifugal fan; 50A switch (Wusi); Frequency converter: Schneider; Temperature control instrument, small relay and thermocouple: GB, Motor: JSCC |
