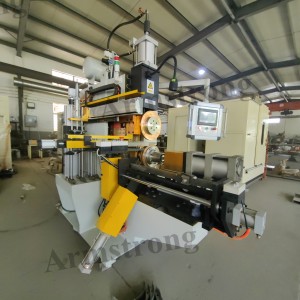

Roller Welding Machine A-ZP320

1. Application:

The intermediate frequency roller welding machine for automobile brake shoe is an ideal special welding equipment designed and manufactured by our company for automobile brake production according to the welding technical requirements of brake shoes. We designed 5 models welding machine, which suitable for welding of different thickness. And we also successfully developed the semi-automatic and automatic type for each model.

The equipment has a wide range of applications and is suitable for the welding of single reinforcement of automobile brake shoe. The touch screen digital input is used to control the operation settings, which is simple and convenient to operate.

The equipment accessories (panel material rack, conductive box, servo drive, clamping mold, pressure welding cylinder) are world-famous brand products. In addition, the high-precision planetary reducer can improve the positioning accuracy of the shoe.

It also adopts single chip microcomputer as the main control unit, which has the characteristics of simple circuit, high integration and intelligence, reduces the failure rate and is convenient for maintenance.

For semi-automatic roller welding machine, it needs worker to feed the brake rib and plates manually, and the machine will clamp them automatically for welding.

For automatic roller welding machine, we just need to put the ribs and plates in the appointed place, the cylinders will push them automatically. It can greatly save the labor cost and improve the production efficiency.

2. Our Advantages:

1. The equipment has high control precision, stable output current, small inductive reactance effect, beautiful welding appearance and less splash.

2. The equipment has the function of single / continuous spot welding, and continuously performs multi specification welding.

3. Three phase power input, load balance, power turns close to 1, reduce power consumption, save energy and reduce consumption.

4. The conductive box adopts mercury to conduct electricity, with good conductivity, durability, low maintenance rate and cost saving.

5. The hydraulic system is used for clamping the die, the clamping force is stable, and the workpiece will not loosen during welding.

6. The cylinder adopts wear-resistant sealing ring and bipolar pressurization system, which can increase the stability of welding and improve the durability of welded cylinder.

7. The panel material rack adopts a hand-operated structure, which can be adjusted up and down, back and forth.

8. Mold replacement is very convenient, and costs short time.

9. Save 35% power than the power frequency type.
