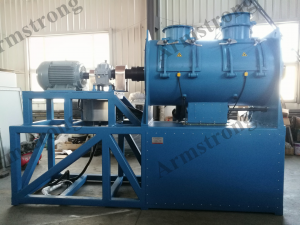

1200L plow and rake mixing machine

1. Application:

RP870 1200L plow and rake mixer is widely used in friction materials, steel, feed processing and other fields of raw materials mixing.

The equipment is mainly composed of a rack, a high-speed stirring cutter, a spindle system and a barrel body. Similar with the RP868 800L mixer, RP870 is more big in mixing volume. Thus is it suitable for the professional brake pad making factory with big material needs.

2. Working principle

In the middle of the horizontal axis of the circular barrel, there are multiple plough-shaped mixing shovels designed to rotate so that the material moves in the whole space of the barrel.One side of the barrel is equipped with a high-speed stirring knife, which is used to further improve the mixing efficiency and to break the lumps in the material to ensure that the powder, liquid and slurry additives are thoroughly mixed.Integrating mixing and crushing mechanism is the biggest advantage of the plough - rake mixer.

3. Our advantages:

1. Continuous feeding and discharging, high mixing degree

The structure of the mixer is designed with single shaft and multiple rake teeth, and the rake teeth are arranged in different geometric shapes, so that the materials are thrown into a back and forth moving material curtain in the whole body of the mixer, so as to realize the cross mixing between materials.

This mixer is especially suitable for mixing powder and powder, and can also be used for mixing between powder and a small amount of liquid (binder), or mixing between materials with large specific gravity difference.

2. The equipment works stably

The mixer has a horizontal structure. The materials to be mixed are input into the mixer through the belt and mixed by the mixing tool. The barrel of the mixer is equipped with rubber lining plate, and do not let it stick. The mixing tool is made of high wear-resistant steel and welded with wear-resistant welding rod with long service life. The mixer has been used in many fields for many years, and the practice has proved that its structural design is reasonable, its work is stable, and its maintenance is convenient.

3. Strong sealing performance and little impact on the environment

The horizontal plough mixer is a horizontal closed simplified structure, and the inlet and outlet are easy to connect with the dust removal equipment, which has little impact on the environment of the mixing area.

Discharge mode of horizontal plow mixer: the powder material adopts pneumatic large opening structure, which has the advantages of fast discharge and no residue.
